- Solid and Unbreakable with Double Protection:Well protected by Torsion protection,Power failure protection after over load.
- Better Perfomance: A clutch gear DC core motor built inside the digital servo motor. Suitable for 16 Years Older
- Widely Used: Supports for all kind of R/C Toys, Arduino and Raspberry Pi Projects, Remote control helicopters, micro robot, robot arm and boats
- No Load Speed: 4.8V, ≦0.14sec/60°; 6V, ≦0.12sec/60°. Note: Torsion protection: ≥0.9 kgf·cm;Power failure protection after 5 seconds of continuous
- Stall Torque: 1.4 kg/cm(4.8V), 1.6kg/cm(6V)
Introduction
The maximum torque of the clutch gear digital servo is up to 1.6KG. It rotates from 0-180 degrees.Mechanical limit angle is 360 degrees. You can control its angle by a potentiometer. The connection cable is 25cm long, the orange wire is the signal wire, brown, the ground, and red, the power. The servo works under the voltage of 4.8~6.0V.
Sepcification:
Motor Type: Core motor
Operating Voltage: 4.8~6V DC
Standby Current: ≤4 mA
Consumption Current (at 4.8V No Load): ≦50mA
Consumption Current (at 6 V no load): ≦60mA
Stall Current(at locked 4.8V): ≦550mA
Stall Current(at locked 6V): ≦650mA
Rated Torque: 4.8V, ≥0.6 kgf·cm; 6V, ≥0.7 kgf·cm
Max. Torque: 4.8V, ≥1.4 kgf.cm; 6V, ≥1.6 kgf.cm
No Load Speed: 4.8V, ≦0.14sec/60°; 6V, ≦0.12sec/60°
Note: Torsion protection:≥0.9 kgf.cm;Power failure protection after 5 seconds of continuous
Operating Temperature Range： -10℃～ 50℃
Storage Temperature Range: -20℃~ 60℃
Operating Humidity Range: ≤ 90%RH
Storage Humidity Range: ≤ 90%RH
Weight: 10± 0.5g
Material: ABS
Operating Angle: 180°±10°(500~2500us)
Mechanical Limit Angle: 360°
Left & Right Travelling Angle: ≤ 6°
Centering deviation: ≤ 1°
Back Lash: ≤ 4 us
Amplifier Type: Digital
Cable Materia: Ф1.08,19 PVC
Cable Length: 245±5mm(Exsert without plugs)
Connector Type: JR2.54mm/3Pin
Package includes:

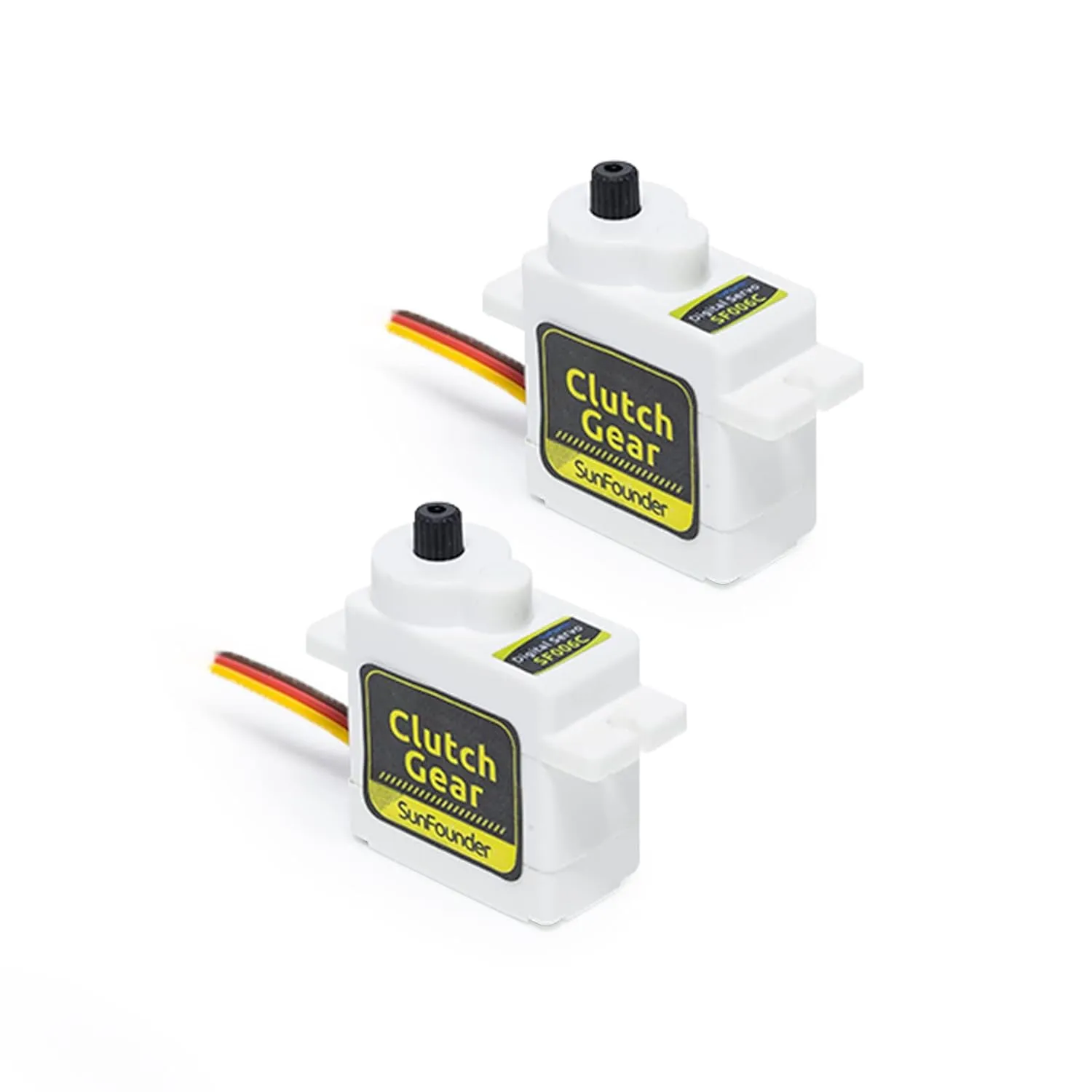

2 Pcs Mini SF006C Micro Servo Motor
M2*8 Self-tapping screw
M1.7*3 screw
- Product Dimensions : 0.1 x 0.1 x 0.1 inches; 0.32 ounces
- Manufacturer recommended age : 15 years and up
- Date First Available : February 10, 2023
- Manufacturer : SunFounder
- Country of Origin : China
